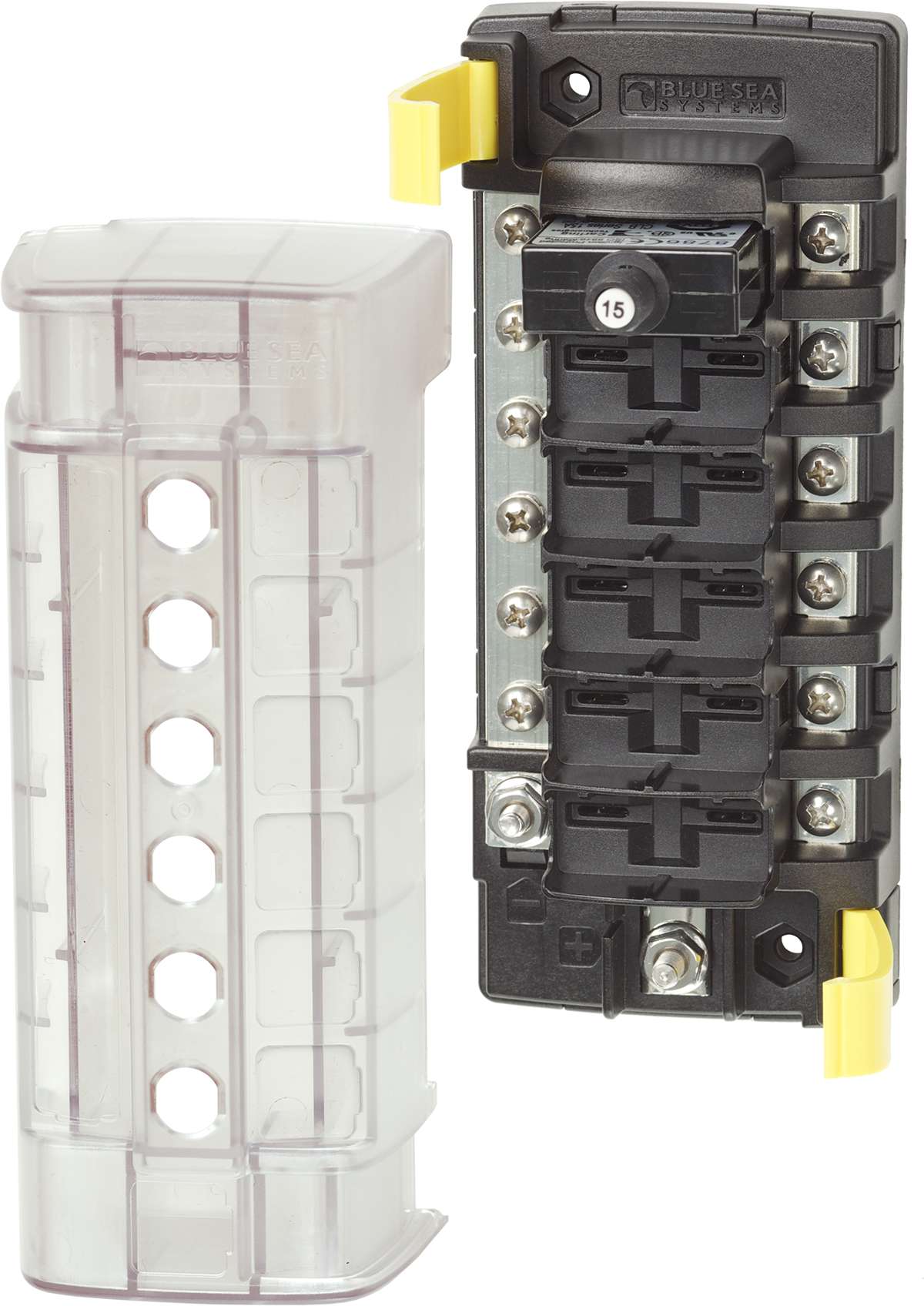

Blue Sea St Clb Circuit Breaker Block - 6 Position With Negative Bus
Blue Sea ST CLB Circuit Breaker Block - 6 Position with Negative Bus
Model: 5052-BSS- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals
- Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
- Easy to open clip on cover
- Breakouts allow wire access in two directions
- Accepts ring terminals
- Optional push button waterproof boots or dress nuts can be installed over cover
- Accepts square labels
The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.
Specifications| Circuits | 6 |
| Maximum Amperage | 100A (per block) 32A (per circuit) |
| Maximum Voltage | 32V DC |
| Negative Bus | #10-32 Stud |
| Positive Bus | #10-32 Stud |
| Source | Common Source |
| Minimum Operating Temperature | -10° C |
| Maximum Operating Temperature | 60° C |
| Mounting Centers | 5.63in (143 mm) |
