Newmar Cs-1 Connector Strip F/ 16g Wire

No reviews
$21.45
Shipping calculated at checkout.

Delivery and Shipping

We only ship to the continental U.S, including territories, Samoa and APO/FPO addresses. Delivery estimates include item preparation and shipping time.

Standard items are shipped within 24 hours on weekdays. Orders placed after 3:00 PM EST on a Friday will be shipped on Monday.

However,  for special industrial, Fishing and Tackle Products:

  • We do not ship to P.O. boxes
  • We do not ship directly to APO/FPO addresses.
  • Delivery time may vary from 4 to 20 days.

FREE SHIPPING! on orders of less than 5lbs and with purchase price of $149.99.00 or more;
Pay an annual fee of $99.00 and receive Free Shipping for all Orders during the year of Active Membership.

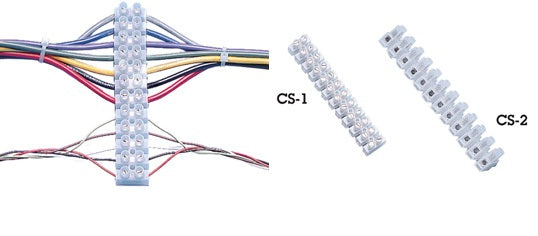

  • Molded nylon encases 6 or 12 pairs of connectors that use screw compression to secure wires without use of lugs. ideal for electronic installations. Brass barrels capture wires and are held in place with a stainless steel ?finger"" compressed by a screw. The screw does not make contact with the wires, protecting the copper strands from cuts and breakage ? Meets ABYC standards. (Same connector strip used in BX Series boxes.)
  • Strips are easily cut to meet wiring requirements and space limitations.

Model # of Terminal Pairs Max Wire Gauge Max Amps* Size
L X W X H
CS-1 12 16 6 3.75"" x .675"" x .5""
CS-2 12 14 10 4.5"" x .75"" x .75""
Newmar

Newmar Cs-1 Connector Strip F/ 16g Wire

$21.45
Model # of Terminal Pairs Max Wire Gauge Max Amps* Size
L X W X H
CS-1 12 16 6 3.75"" x .675"" x .5""
CS-2 12 14 10 4.5"" x .75"" x .75""
