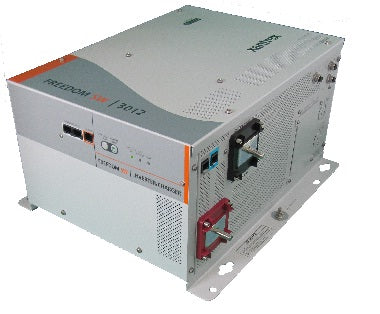

Xantrex FREEDOM SW 3012 — 12V Inverter Charger

Model: 815-3012
  • Stackable in parallel or series
  • 200% surge for 5s for motor loads
  • True sine wave to support sensitive electronics
  • Generator support mode
  • Xanbus Enabled

True sine wave Inverter. 200% power surge for 5s to support motor loads. Generator support mode to supplement generator when AC loads exceed generator’s capacity. Stackable in parallel and series. Xanbus EnabledTM to work with Freedom SW Combox accessory to provide data logs and system control, accessible from your smartphone or tablet.

Freedom SW series from Xantrex are the most advanced and capable inverter chargers in the mobile market. Available in 3000 W with 150 A charger and 2000 W with 100 A charger, these units are packed with features like "Generator Support Mode" which enables the Freedom SW to assist a generator when AC loads exceed the generator’s capacity. They are also stackable for extra power and with the ComBox accessory, data logs and system control can be pushed to your tablet or phone! If you are looking for a unit for your air conditioning, this is the one! With a powerful long duration 2x surge and other industry leading features, the Freedom SW series will handle demanding power requirements.

Specifications
Electrical Specifications — Inverter
Output power (continuous at 40°C) 3000 W
3000 W 6000 W
Peak output current 75 A
Output frequency 60 Hz +/- 0.2 Hz
Output voltage 120 Vac
120 Vac True sine wave
Optimal efficiency 94%
No-load power draw (inverting) <1.5 Adc
Input DC voltage range Input DC voltage range
AC connections Split phase in / Dual out
Electrical Specifications — Battery Charger
Output current (continuous at 25°C) 150 A
Output voltage 12 Vdc
Output voltage range 5 — 16 Vdc
Charge control 3 stage with manual equalize
Charge temperature compensation Remote battery sensor (included)
Optmial Efficiency > 85%
AC input power factor (maximum charge) 0.98 typical
Input current (for maximum charging) 24 A rms nominal
Input AC voltage 120 Vac
Input AC voltage range 85 — 140 Vac
Dead battery charge > 5 Vdc
General Specifications
Compatible battery types LiFePO4 / Flooded / gel / AGM*
Transfer relay rating 2 legs at 30 A each
Transfer time (AC to inverter and inverter to AC) < 20 ms
Optimal operating temperature range — 4°F to 140°F (- 20°C to 60°C)
Storage ambient temperature range — 40°F to 185°F (- 40°C to 85°C)
L x W x H 7.75 x 13.5 x 15.25" (197 x 343 x 387 mm)
d

What's in the Box:
  • Freedom SW 3000
  • Battery Temperature Sensor (BTS)
  • DC terminal covers (one red, one black) with two sets of #6-32 screws
  • Two Xanbus network terminators
  • Two sets of 5/16"-18 nuts and washers for the DC terminals
  • Owner’s and Installation Guides
