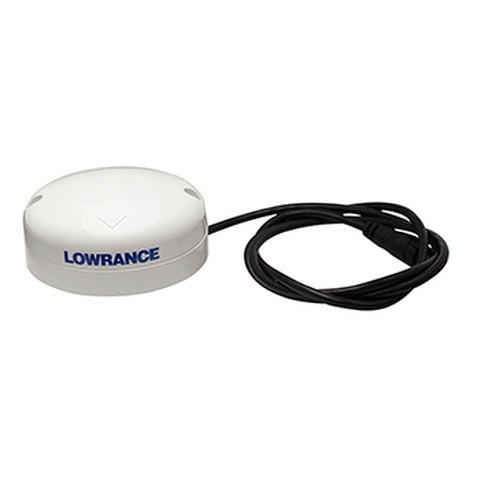

Lowrance Point-1ap Gps Module
Lowrance Point-1AP GPS and Heading Antenna
Model: 000-12930-002- NMEA 2000® position and heading sensor
- Supports GPS and GLONASS, Galileo-capable with future software update
- Supports SBAS including WAAS/EGNOS/MSAS
- 10 Hz updates for smooth and accurate location
- Integrated electronic compass provides 10Hz heading for chart stabilization and radar overlay, plus accurate course over ground even at low speeds
- Compact, rugged design for all marine environments and fully waterproof
Point-1AP GPS and Heading antenna provides extremely accurate and rapid boat position and speed updates to the network. Built in magnetic compass with accuracy and tuning specific for Lowrance Autopilots also provides chart stabilization and radar overlay, plus accurate course over ground even at low speeds.
Specifications| Networking | |
| NMEA 2000 Certified | Yes |
| Connectors | NMEA 2000 Micro C |
| Power | |
| Power Supply (Supply Voltage) | 9v-18v |
| GPS Navigation | |
| GPS Receiver Channels | 32 |
| Heading Accuracy | 3 degrees |
| Horizontal Accuracy | 5 m |
| Rate of Turn | 3 degrees |
| Satellite Reacquisition | <5 seconds |
| Start-up Time | <3 seconds |
| Cold Start | <50 seconds |
| Picth/Roll Angle | @30 degrees 1 grade error |
| Technical/Environmental | |
| Diameter | 90 mm (3.54in) |
| Product Height | 38 mm ( 1.50in) |
What's in the Box:
- Point-1AP Sensor
- N2K-T-RD - Micro-C T-connector for connection of an additional network device
- N2KEXT-15RD - 4.55 m (15-ft) NMEA 2000® cable for backbone extension or or drop cable to connect an additional network device
