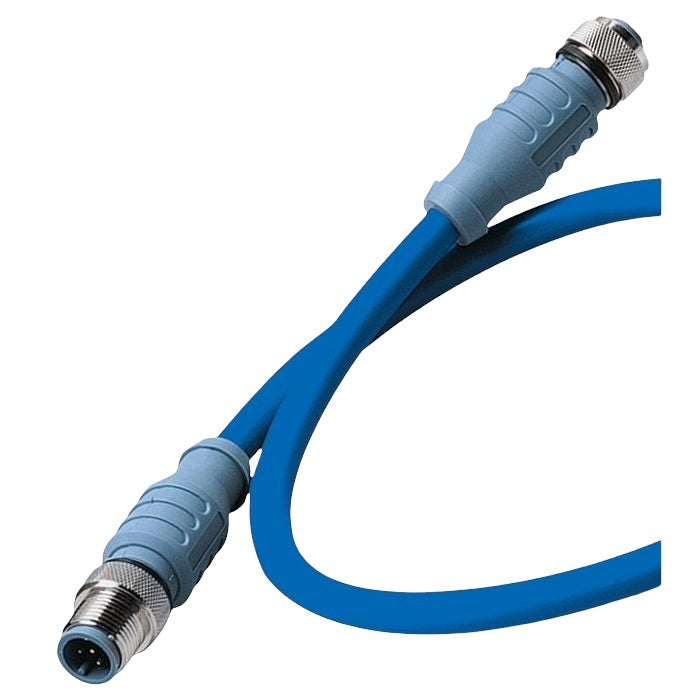

Maretron Blue Mid Cable 2m Male To Female Connector

No reviews
$54.00
Shipping calculated at checkout.

Delivery and Shipping

We only ship to the continental U.S, including territories, Samoa and APO/FPO addresses. Delivery estimates include item preparation and shipping time.

Standard items are shipped within 24 hours on weekdays. Orders placed after 3:00 PM EST on a Friday will be shipped on Monday.

However,  for special industrial, Fishing and Tackle Products:

  • We do not ship to P.O. boxes
  • We do not ship directly to APO/FPO addresses.
  • Delivery time may vary from 4 to 20 days.

FREE SHIPPING! on orders of less than 5lbs and with purchase price of $149.99.00 or more;
Pay an annual fee of $99.00 and receive Free Shipping for all Orders during the year of Active Membership.

Maretron Blue Mid 2 Meter Cable

Model: DM-DB1-DF-02.0
UPC: 873804001913
  • Rugged, IP68 rated connectors for continued connection integrity in marine environments
  • Various cable lengths to match installation requirements
  • Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of Micro cable

Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.

Specifications
Mechanical
Contact Carrier Mat/Color Thermoplastic PUR/Blue
Molded Body Mat/Color Thermoplastic PUR/Blue
Contact Mat/Plating Brass/Gold
Coupling Nut Mat/Plating Brass/Nickel
Connector Outside Diameter 0.59 in
Electrical
Current rating 4.0 Amps
Voltage rating1 250v
Cable
Outer Jacket Mat/Color PVC/Blue
Conductor Insulation Material PE (data pair), PVC (power pair)
Number of Conductors 2x16 (1.29mm) AWG,
2x20 (0.81mm) AWG,
20 (0.81mm) AWG Drain Wire
Shielding (3 Levels) Foil (Overall), Foil (Power Pair), Foil (Data Pair)
Enviromental
Protection class IEC IP68, NEMA 1,3,4,6P
Temperature rating -40°C to 80°C to (-40°F to 176°F)
Approvals
(Cable) UL PLTC 75°C Sunlight Resistant E90625, AWM 80°C 300V
(Cable) CSA CMX-OUTDOOR-CMG LL54185 75°C, AWM I/II A/B 80C 300V FT4
NMEA NMEA 2000® Approved
IEC IEC 61162-3
