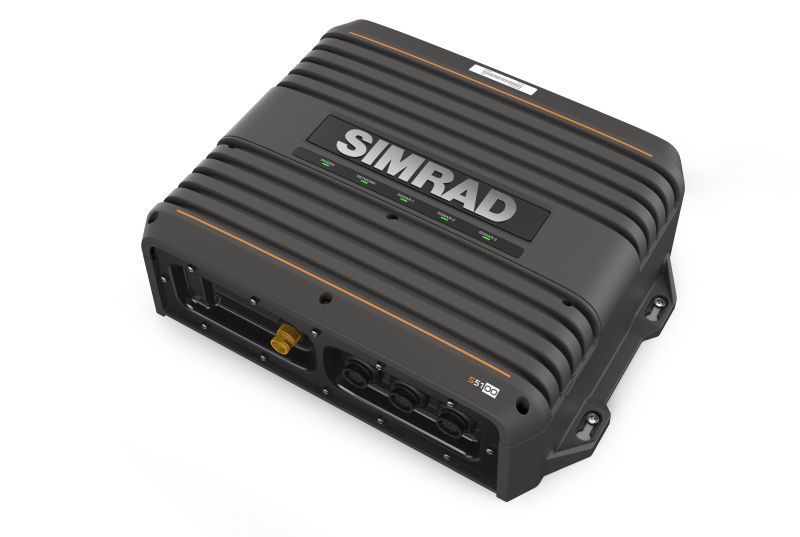

Simrad S5100 High-Performance CHIRP Sonar Module

Model: 000-13260-001
  • Three fully independent sonar channels deliver high-resolution coverage
  • Noise-free clarity at all depth ranges
  • Combine any three frequency ranges to target multiple depths, including Ultra-Low, Low, Medium, or High CHIRP
  • Compatible with wide-angle CHIRP transducers for greater coverage of the water column
  • Simultaneous split-screen viewing of multiple depth ranges on your display
  • Maximum depth of 3,000 metres / 10,000 feet (transducer dependent)
  • Easy to install with three plug-and-play 9-pin transducer connectors
  • Compatible with Simrad NSS evo3 and NSS evo2 multifunction displays, NSO evo2 systems, and S2000-series fish finders

The S5100 high-performance CHIRP sonar module features three fully independent channels able to deliver high-resolution sonar coverage across multiple depth ranges, precision-focused for offshore sportfishing anglers. Simultaneous split-screen viewing capability puts you in complete control of the water column, while advanced processing technology allows you to fish with noise-free clarity at all depth ranges without ever losing bottom depth tracking. Mix and match your favourite transducer coverage and transmit power for wide and narrow beam-widths to reveal more fish, detecting small and tightly spaced fish and identifying thermoclines; or adjust specific CHIRP frequencies from 28 to 250 kHz to precisely target specific depths producing big, crisp arches with clear target separation.

Specifications
Networking Ethernet 1 X 100 Mbps
Mounting type Bulkhead or desk mount
Interface Ethernet 1 x 100 Mbps
Recommended Fuse Rating 5A
Power Consumption, typical 85W Max
Power Consumption, min. 23 W
Supply Voltage 12 or 24 (10.4 - 31.2)
Dimensions 340 W x 100 H x 250 D mm excluding connectors (378 mm D including connectors)

What's in the Box:
  • S5100 Module
  • Powercord
  • 4.5m Ethernet cable
  • 7 TO 9 Pin Adapter Cable X 3
