Garmin Gt30-thp Thru Hull Pair Scanning Transducer

No reviews
$1,312.49
Shipping calculated at checkout.

Delivery and Shipping

We only ship to the continental U.S, including territories, Samoa and APO/FPO addresses. Delivery estimates include item preparation and shipping time.

Standard items are shipped within 24 hours on weekdays. Orders placed after 3:00 PM EST on a Friday will be shipped on Monday.

However,  for special industrial, Fishing and Tackle Products:

  • We do not ship to P.O. boxes
  • We do not ship directly to APO/FPO addresses.
  • Delivery time may vary from 4 to 20 days.

FREE SHIPPING! on orders of less than 5lbs and with purchase price of $149.99.00 or more;
Pay an annual fee of $99.00 and receive Free Shipping for all Orders during the year of Active Membership.

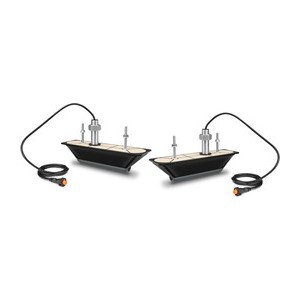

Garmin GT30-THP Thru Hull Pair

Scanning Transducer

Model: 010-01961-11

Perfect for the shallow water fisherman who want CHIRP ClearVü and CHIRP SideVü scanning sonar with stainless steel stems, this pair of 12-pin thru-hull transducers consistently displays clear definition of objects, structure and fish below and to each side of the boat.

These transducers with built-in fast response temperature sensors have a power rating of 500 W per element (1,500 W total); a depth of 750 ft (ClearVü) and 500 ft left and right (SideVü); an operating frequency of CHIRP 455/800 kHz ; for hull deadrises from 5 degrees to 25 degrees. Pair them with your GCV™ 10 scanning sonar module.

Includes 12-pin port and starboard transducers with stainless steel stems, isolation bushings, fairing blocks, Y-cable, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.

Specifications
General
Frequency
ClearVü/SideVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
Power
ClearVü/SideVü 500 W
Beamwidth
ClearVü 1.4°x53° @ 455 kHz and 0.8°x30° @ 800 kHz
SideVü 1.1°x53° @ 455 kHZ and 0.7°x30° @ 800 kHz
Maximum depth
ClearVü 750 ft
SideVü 500 ft.
Depth/Speed/Temperature Depth and Temperature
Number of pins 12-pin
Cable length 5 ft. + 30 ft. y-extension cable
Supported deadrise/Transom angles Up to 25° deadrise
Garmin

Garmin Gt30-thp Thru Hull Pair Scanning Transducer

$1,312.49

Garmin GT30-THP Thru Hull Pair

Scanning Transducer

Model: 010-01961-11

Perfect for the shallow water fisherman who want CHIRP ClearVü and CHIRP SideVü scanning sonar with stainless steel stems, this pair of 12-pin thru-hull transducers consistently displays clear definition of objects, structure and fish below and to each side of the boat.

These transducers with built-in fast response temperature sensors have a power rating of 500 W per element (1,500 W total); a depth of 750 ft (ClearVü) and 500 ft left and right (SideVü); an operating frequency of CHIRP 455/800 kHz ; for hull deadrises from 5 degrees to 25 degrees. Pair them with your GCV™ 10 scanning sonar module.

Includes 12-pin port and starboard transducers with stainless steel stems, isolation bushings, fairing blocks, Y-cable, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.

Specifications
General
Frequency
ClearVü/SideVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
Power
ClearVü/SideVü 500 W
Beamwidth
ClearVü 1.4°x53° @ 455 kHz and 0.8°x30° @ 800 kHz
SideVü 1.1°x53° @ 455 kHZ and 0.7°x30° @ 800 kHz
Maximum depth
ClearVü 750 ft
SideVü 500 ft.
Depth/Speed/Temperature Depth and Temperature
Number of pins 12-pin
Cable length 5 ft. + 30 ft. y-extension cable
Supported deadrise/Transom angles Up to 25° deadrise
