Garmin Reactor 40 Autopilot For Kicker Without Ghc20

Garmin Reactor™ 40 Kicker Autopilot Without GHC™ 20 Autopilot Display

Model: 010-00705-95

• Specially designed for boats with small gasoline outboard motors up to 20 horsepower
• Helps maintain heading hold and route to keep you on course — even against wind, waves or heavy current
• Includes convenient floating handheld remote control with a bright, sunlight-readable display
• Easily fine-tune autopilot throttle setting with the touch of a button to quickly drop to idle speed when netting a fish
• Easy to install and integrate with included GHC 20 autopilot display, compatible Garmin chartplotters or NMEA 2000® network-compatible GPS system

Whether you’re going for salmon, trout, walleye or some other species or just taking your sailboat out of the marina, your Reactor 40 kicker autopilot can help you maintain heading hold and route to keep you on course — even against wind, waves or heavy current.

The Reactor 40 kicker autopilot includes a convenient floating handheld remote control with a bright, sunlight-readable display. Quickly and easily fine-tune your autopilot throttle setting with the touch of a button, and quickly drop to idle speed when netting a fish or coming up to a mooring. Enjoy easy integration with our GHC 20 autopilot display, compatible Garmin chartplotters or NMEA 2000 network-compatible GPS system for a seamless onboard setup.

Specifications

ECU-14
Dimensions	6.9" x 5.6" x 2.6" (17.5 x 14.2 x 6.5 cm)
Supply voltage range	10 to 32 volts
Operating temperature range	-20° to 70° C
Typical power consumption	1 to 2 amps average depending on weather conditions
Water rating	IPX7
Throttle Actuator
Dimensions	6.0" x 2.5" x 1.1" (15.1 x 5.9 x 2.8 cm)
Operating temperature range	0° to 70° C
Water rating	IPX6
Steering Actuator
Dimensions
Motor side	Extends 4" (10.3 cm) from end of tilt tube
Motor	2.5" (6.2 cm) diameter
Overall length	Closed 17.5" (44.5 cm); Extended 25.3" (64.4 cm)
Steering Acuator General
Operating temperature range	-20° to 70° C
Water rating	IPX7
Reactor Remote
Physical dimensions (W x H x D)	6.0" x 2.0" x 1.3" (15.2 x 5.2 x 3.2 cm)
Weight	3.8 oz (109 g) without batteries
Display type	Sunlight-visible, transflective memory-in-pixel (MIP)
Display size	1.2" (3.0 cm) diameter
Display resolution	240 x 240 pixels
Power	2 x AA batteries (sold separately)

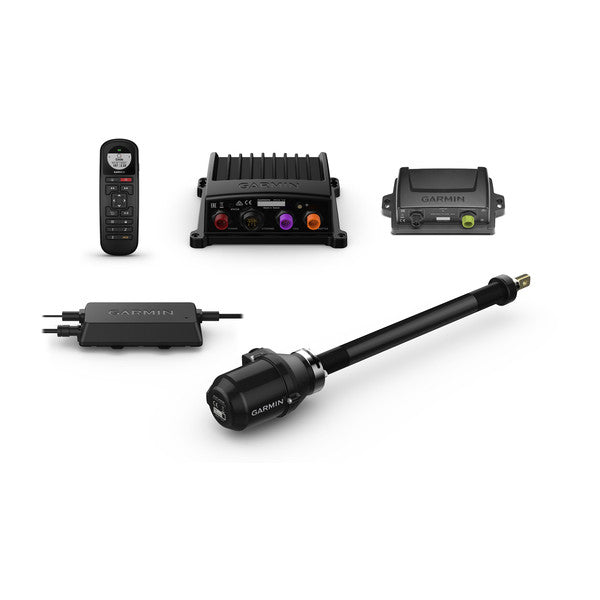

What's in the Box:

• Autopilot Remote
• CCU (Course computer unit)
• ECU (Electronic control unit)
• ECU power cable
• ECU to CCU interconnect cable
• Steering actuator
• Throttle actuator
• Documentation
