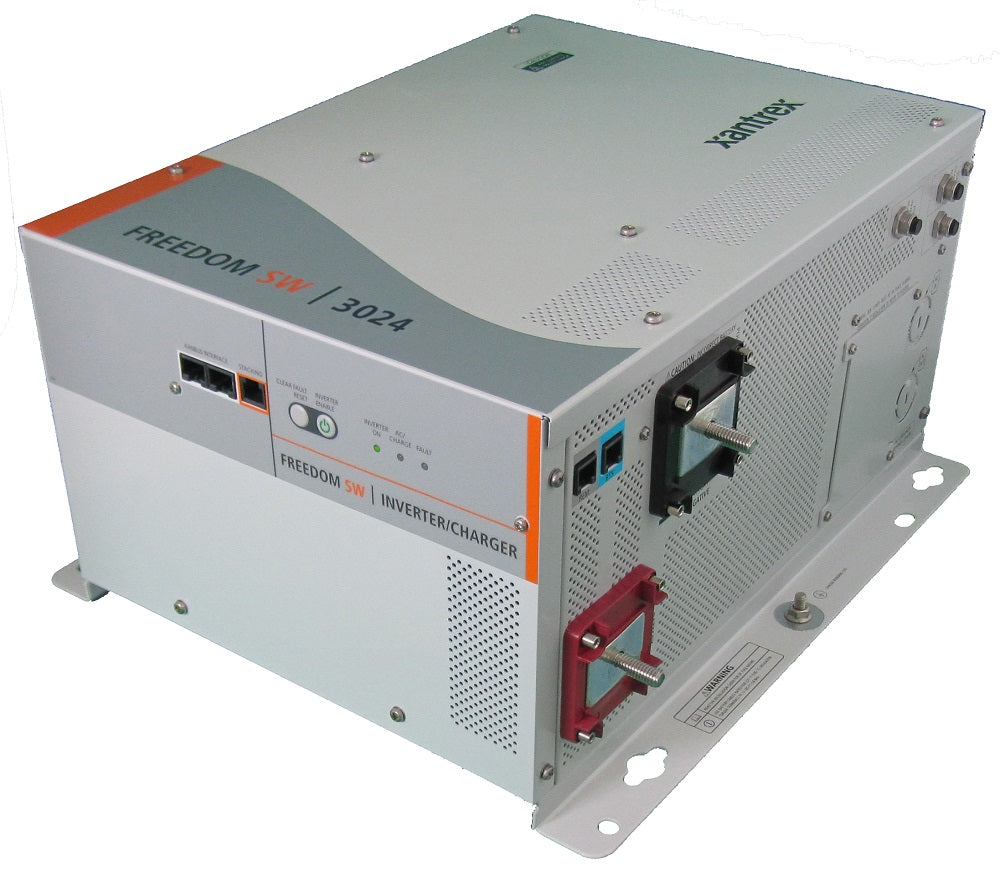

Xantrex Freedom Sw3024 24v Inverter Charger

No reviews
$2,537.50
Shipping calculated at checkout.

Delivery and Shipping

We only ship to the continental U.S, including territories, Samoa and APO/FPO addresses. Delivery estimates include item preparation and shipping time.

Standard items are shipped within 24 hours on weekdays. Orders placed after 3:00 PM EST on a Friday will be shipped on Monday.

However,  for special industrial, Fishing and Tackle Products:

  • We do not ship to P.O. boxes
  • We do not ship directly to APO/FPO addresses.
  • Delivery time may vary from 4 to 20 days.

FREE SHIPPING! on orders of less than 5lbs and with purchase price of $149.99.00 or more;
Pay an annual fee of $99.00 and receive Free Shipping for all Orders during the year of Active Membership.

Xantrex SW3024 24v 3000W Inverter Charger

Model: 815-3024
  • Pure sine wave output in two 24-volt
  • Parallel stacking capability to double the inverter power output
  • Series stacking capability enables operation of 240 Vac applications
  • Advanced configuration options for customized applications*
  • Built-in transfer switch automatically transfers between inverter power and incoming AC power
  • Power factor corrected, multi-stage charger for fast, efficient charging
  • Temperature compensated charging for a vareity of climate conditions
  • Ignition lockout feature helps prevent unnecessary battery drain when the alternator is not providing power**
  • Wide operating temperature range
  • Conformal coated circuit boards for humid environments
  • Dual input / Dual output AC interface (3000W model)
  • Compatible with the Xantrex Automatic Generator Start*** (Part# 809-0915)
  • Meets CSA, UL458 (with marine supplement), ABYC and FCC Part 15, Class B requirements

The NEW Freedom SW 24 Vdc inverter/charger is packed with features and it is one of the most advanced inverter/chargers in the market today. The Freedom SW features premium sine wave output with high surge capability and temperature compensated, power factor corrected, multi-stage charging to meet power needs of demanding loads including inductive motor loads.

The Freedom SW inverter/charger provides utility grade AC power to operate commonly used AC-powered electronics such as plasma television sets, microwaves, entertainment systems, computers, printers, power tools, refrigerators and much more.

The Freedom SW offers SERIES and PARALLEL stacking capability to enable twice-the-rated output and operation of 240 Vac applications respectively. Both models are compatible with optional accessories such as the System Control Panel and the Automatic Generator Start.

*A System Control Panel is required for all system configuration and setup **When used with the remote panel ***Sold separately

Specifications
Electrical Specifications Inverter
Output power (continuous at 40°C) 3000 W
Surge rating (5 seconds) 6000 W
Peak output current 75 A
Output frequency 60 Hz +/- 0.2 Hz
Output voltage 120 Vac
Output wave form Pure sine wave
Optimal efficiency 94%
No-load power draw (inverting) < 1.5 Adc
Input DC voltage range 20 - 32 Vdc
AC connections Split phase in / dual out
Electrical specifications charger
Output current (continuous at 25°C) 75 A
Output voltage 24 Vdc
Output voltage range 12 - 32 Vdc
Charge Control 3 stage with manual equalize
Charge temperature compensation Remote battery sensor (included)
Efficiency > 85%
AC input power factor (maximum charge) 0.95 typical
Input current (for maximum charging) 22 A rms nominal
Input AC voltage 120 Vac
Input AC voltage range 85 - 140 Vac
Dead battery charge > 12 Vdc
General Specifications
Compatible battery types Flooded / Gel / AGM
Transfer relay rating 2 legs at 30 A each
Transfer time (AC to inverter and inverter to AC) < 20 ms
Operating temperature range (full power) - 4°F to 104°F (- 20°C to 40°C)
Storage ambient temperature range - 40°F to 185°F (- 40°C to 85°C)
Unit dimensions (H x W x L) 7.75 x 13.5 x 15.25" (197 x 343 x 387 mm)

What's in the Box:
  • SW3024
  • Documentation
  • battery Temperature sensor
  • DC terminal covers (one red, one black) with two sets of #6-32 screw
  • Xanbus network terminator x 2
  • 5/16"-18 nuts and washers for the DC terminals x 2
Xantrex
