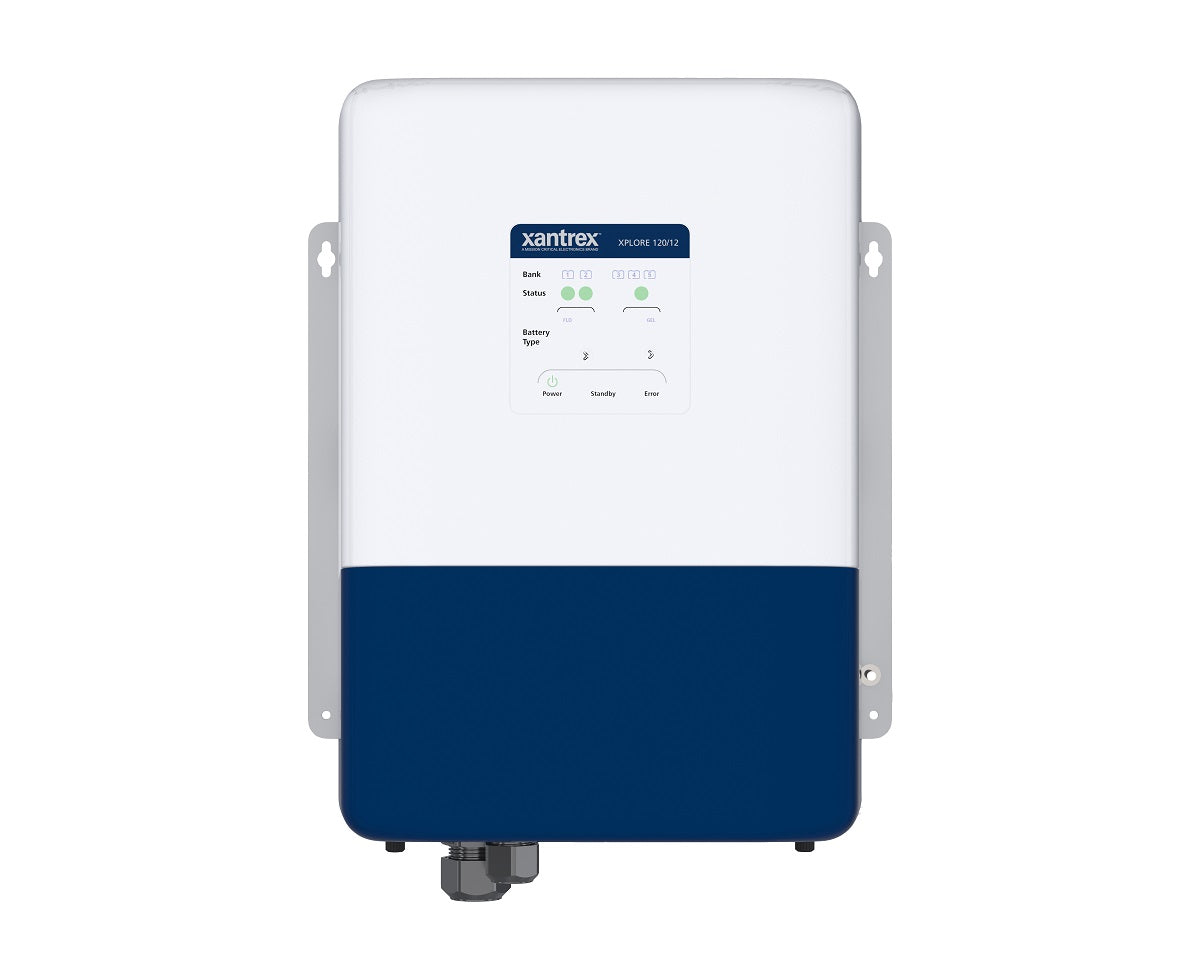

Xantrex Xplore Battery 120 Amp 6 Bank 12v Charger

No reviews
$1,566.44
Shipping calculated at checkout.

Delivery and Shipping

We only ship to the continental U.S, including territories, Samoa and APO/FPO addresses. Delivery estimates include item preparation and shipping time.

Standard items are shipped within 24 hours on weekdays. Orders placed after 3:00 PM EST on a Friday will be shipped on Monday.

However,  for special industrial, Fishing and Tackle Products:

  • We do not ship to P.O. boxes
  • We do not ship directly to APO/FPO addresses.
  • Delivery time may vary from 4 to 20 days.

FREE SHIPPING! on orders of less than 5lbs and with purchase price of $149.99.00 or more;
Pay an annual fee of $99.00 and receive Free Shipping for all Orders during the year of Active Membership.

Xantrex Xplore battery Charger 12v 120 Amp

Model: 819-0120-12
  • 6 Battery Banks and Dual-Chemistry Charging
  • Xantrex Lithium and Custom Battery Charging
  • NMEA 2000 Connectivity
  • Xantrex App Connectivity
  • Auto-ranging universal input voltage (80-265 Vac, 45-65 Hz)
  • Power Share: automatically reduces charging output to prevent nuisance tripping of the AC input breaker.
  • Quiet Mode: when enabled, the internal fan is turned off and the charger operates at a reduced output when quietness is needed.
  • Storage Mode: automatically refreshes your batteries once every several days of non-use to ensure optimal battery condition.
  • Dead Battery Charging: ability to charge a battery as low as 0V back to full-charge
  • Reverse battery polarity protection
  • Drip-proof design
  • Over and under-temperature protection
  • DC over-voltage protection
  • Battery overcharging protection

The XPLORE 120/12 battery charger is the largest and most powerful charger in the market today. The universal, auto-ranging AC input and 120 amps of output current ensures ultra-fast and reliable worldwide charging. With up to six output banks of simultaneous charging combined with the ability to charge two battery banks with differing chemistries, the XPLORE 120/12 eliminates the need to have separate single-chemistry chargers and minimizes installation and wiring costs for your house bank and engine bank.

It is also equipped with an easy-to-read front panel LED display for basic configuration and status information. Advanced monitoring and configuration is enabled by NMEA 2000 protocol or Xantrex app using the Xantrex BLE module.

Specifications
ELECTRICAL SPECIFICATIONS
Max Total BAT1-6 DC Output Current 120A
Max Total BAT1-2 DC Output Current 5 to 120A (selectable)
Max Total BAT3-6 DC Output Current 5 to 40A (selectable)
DC Output Voltage 12Vdc (nominal)
DC Output Connections 6
AC Input Voltage (Auto Ranging) 120Vac / 230Vac (nominal), 80 to 265 Vac
Power Factor at Full Charge Rate > 98%
Charging Modes 3-Stage, 2-Stage, Constant Voltage
Supported Battery Types AGM, FLD, GEL, Xantrex LFP, Custom
Equalization (FLD Battery Only) Yes
GENERAL SPECIFICATIONS
Operating Temperature 4 to 140 F (-20 to 60 C), with output derated above 122 F (50°C)
Storage Temperature 40 to 176 F (-40 to 80 C)
Operating Humidity 5 to 95% RH, non-condensing
AC Input Terminal Connection 3-position tool-free spring clamp terminal
DC Output Terminal Connection BAT1-2: Two M6 stud terminals
L x W x H Charger 16.26in (413mm) x 12.34in (312mm) x 6.5in (165mm)
Ingress Protection (IP) Rating Charger: IP-32 (vertical)
REGULATORY APPROVALS
Safety ETL listed to CSA C22.2 No. 107.2, conforms to UL Std. UL1236 (with Marine Supplement)
EMC 47 CFR (FCC) Part 15B, Class B and CAN ICES-3(B) / NMB-3(B)
Ignition Protection SAE J1171, ABYC C-1500

What's in the Box:
  • XPLORE Charger unit
  • Xantrex BLE Module (PN: 808-0889)
  • Owner's Guide and extra labels
Xantrex

Xantrex Xplore Battery 120 Amp 6 Bank 12v Charger

$1,566.44

Xantrex Xplore battery Charger 12v 120 Amp

Model: 819-0120-12

The XPLORE 120/12 battery charger is the largest and most powerful charger in the market today. The universal, auto-ranging AC input and 120 amps of output current ensures ultra-fast and reliable worldwide charging. With up to six output banks of simultaneous charging combined with the ability to charge two battery banks with differing chemistries, the XPLORE 120/12 eliminates the need to have separate single-chemistry chargers and minimizes installation and wiring costs for your house bank and engine bank.

It is also equipped with an easy-to-read front panel LED display for basic configuration and status information. Advanced monitoring and configuration is enabled by NMEA 2000 protocol or Xantrex app using the Xantrex BLE module.

Specifications
ELECTRICAL SPECIFICATIONS
Max Total BAT1-6 DC Output Current 120A
Max Total BAT1-2 DC Output Current 5 to 120A (selectable)
Max Total BAT3-6 DC Output Current 5 to 40A (selectable)
DC Output Voltage 12Vdc (nominal)
DC Output Connections 6
AC Input Voltage (Auto Ranging) 120Vac / 230Vac (nominal), 80 to 265 Vac
Power Factor at Full Charge Rate > 98%
Charging Modes 3-Stage, 2-Stage, Constant Voltage
Supported Battery Types AGM, FLD, GEL, Xantrex LFP, Custom
Equalization (FLD Battery Only) Yes
GENERAL SPECIFICATIONS
Operating Temperature 4 to 140 F (-20 to 60 C), with output derated above 122 F (50°C)
Storage Temperature 40 to 176 F (-40 to 80 C)
Operating Humidity 5 to 95% RH, non-condensing
AC Input Terminal Connection 3-position tool-free spring clamp terminal
DC Output Terminal Connection BAT1-2: Two M6 stud terminals
L x W x H Charger 16.26in (413mm) x 12.34in (312mm) x 6.5in (165mm)
Ingress Protection (IP) Rating Charger: IP-32 (vertical)
REGULATORY APPROVALS
Safety ETL listed to CSA C22.2 No. 107.2, conforms to UL Std. UL1236 (with Marine Supplement)
EMC 47 CFR (FCC) Part 15B, Class B and CAN ICES-3(B) / NMB-3(B)
Ignition Protection SAE J1171, ABYC C-1500

What's in the Box:
