Furuno Drs2dnxt Doppler 19"" Radar Dome Cable Sold Separately Effective 06/20/22

No reviews
$2,728.69
Shipping calculated at checkout.

Delivery and Shipping

We only ship to the continental U.S, including territories, Samoa and APO/FPO addresses. Delivery estimates include item preparation and shipping time.

Standard items are shipped within 24 hours on weekdays. Orders placed after 3:00 PM EST on a Friday will be shipped on Monday.

However,  for special industrial, Fishing and Tackle Products:

  • We do not ship to P.O. boxes
  • We do not ship directly to APO/FPO addresses.
  • Delivery time may vary from 4 to 20 days.

FREE SHIPPING! on orders of less than 5lbs and with purchase price of $149.99.00 or more;
Pay an annual fee of $99.00 and receive Free Shipping for all Orders during the year of Active Membership.

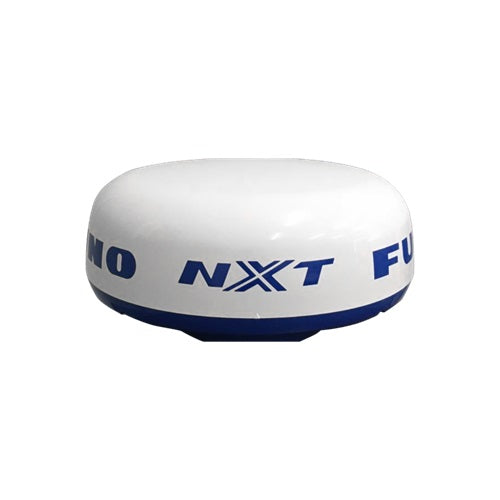

Furuno DRS2DNXT 19"" Solid-State Dopler radar Cable sold Separately

Model: DRS2DNXT

The Furuno NXT Radar is the next step in Radar evolution; a Solid-State Radar with pulse compression, Target Analyzer™ and Fast Target Tracking™ utilizing Doppler technology. Combined with FURUNO exclusive RezBoost™ technology for beam sharpening, NXT packs the performance of a larger Radar in a more compact package.

NXT was the first Radar in the world to use the new Furuno exclusive Target Analyzer™ function, where targets that are approaching your vessel automatically change color. Green targets are targets that stay stationary, or are moving away from you, while red targets are moving towards your vessel. Target Analyzer™ works independent of vessel speed, both your own vessels and target vessels, with minor limitations. Echoes dynamically change colors as targets approach, or get farther away from your vessel. Target Analyzer™ can increase safety, as well as improve situational awareness.

Once a target has been selected, a speed and course vector is displayed in seconds. With accurate tracking information, estimation of other vessel's course and speed is greatly simplified. With Doppler technology, any vessel approaching yours will automatically display a target vector, as well as sound an alarm.

For the first time Furuno's exclusive RezBoost™ technology is used in one of our Radar units, with impressive performance. With RezBoost™ set to MAX, the sharpness of a 2 degree beam width can be achieved.

Effective 06/20/2022 Furuno started selling this without the cable. It must be ordered Separately.

Specifications
Antenna Size 19 inches
Band X-Band
Display Type Supplied Separately works with NavNet TZtouch, TZtouch2, and TZtouch3
Power Usage 12-24 VDC
Antenna Type Radome
Beam Width 5.2 degrees
Power Output 25W

What's in the Box:
  • RSB147-33 Dome
  • 000-194-913-10 Fuse FRU-60V-FU-5A
  • 000-167-232-10 Flat Washer M10 x 4
  • 000-167-233-10 Spring Washer x 4
  • 000-162-883-10 Hex Bolt M10x25 x 4
  • Installation Manual
  • Mounting Template
  • 000-193-055-10 Fuse 15
  • 000-194-913-10 Fuse 5A
  • 000-192-660-10 Fuse 10A
Furuno

Furuno Drs2dnxt Doppler 19"" Radar Dome Cable Sold Separately Effective 06/20/22

$2,728.69

Furuno DRS2DNXT 19"" Solid-State Dopler radar Cable sold Separately

Model: DRS2DNXT

The Furuno NXT Radar is the next step in Radar evolution; a Solid-State Radar with pulse compression, Target Analyzer™ and Fast Target Tracking™ utilizing Doppler technology. Combined with FURUNO exclusive RezBoost™ technology for beam sharpening, NXT packs the performance of a larger Radar in a more compact package.

NXT was the first Radar in the world to use the new Furuno exclusive Target Analyzer™ function, where targets that are approaching your vessel automatically change color. Green targets are targets that stay stationary, or are moving away from you, while red targets are moving towards your vessel. Target Analyzer™ works independent of vessel speed, both your own vessels and target vessels, with minor limitations. Echoes dynamically change colors as targets approach, or get farther away from your vessel. Target Analyzer™ can increase safety, as well as improve situational awareness.

Once a target has been selected, a speed and course vector is displayed in seconds. With accurate tracking information, estimation of other vessel's course and speed is greatly simplified. With Doppler technology, any vessel approaching yours will automatically display a target vector, as well as sound an alarm.

For the first time Furuno's exclusive RezBoost™ technology is used in one of our Radar units, with impressive performance. With RezBoost™ set to MAX, the sharpness of a 2 degree beam width can be achieved.

Effective 06/20/2022 Furuno started selling this without the cable. It must be ordered Separately.

Specifications
Antenna Size 19 inches
Band X-Band
Display Type Supplied Separately works with NavNet TZtouch, TZtouch2, and TZtouch3
Power Usage 12-24 VDC
Antenna Type Radome
Beam Width 5.2 degrees
Power Output 25W

What's in the Box:
