Lenco 12""x12"" Heavy Duty Trim Tab Kit 12v Requires Switch

No reviews
$1,217.62
Shipping calculated at checkout.

Delivery and Shipping

We only ship to the continental U.S, including territories, Samoa and APO/FPO addresses. Delivery estimates include item preparation and shipping time.

Standard items are shipped within 24 hours on weekdays. Orders placed after 3:00 PM EST on a Friday will be shipped on Monday.

However,  for special industrial, Fishing and Tackle Products:

  • We do not ship to P.O. boxes
  • We do not ship directly to APO/FPO addresses.
  • Delivery time may vary from 4 to 20 days.

FREE SHIPPING! on orders of less than 5lbs and with purchase price of $149.99.00 or more;
Pay an annual fee of $99.00 and receive Free Shipping for all Orders during the year of Active Membership.

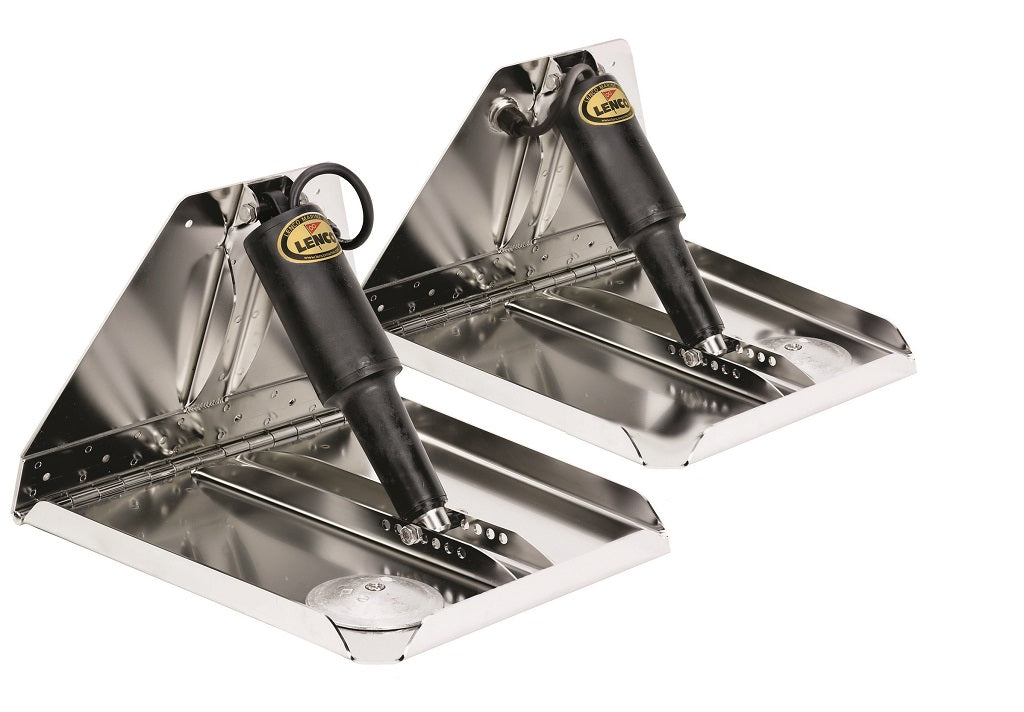

Lenco 12"" X 12"" Heavy Duty Perfomance Trim Tab Kit - Requires Switch

Model: 15041-101

The Heavy Duty series is designed & built for the boats that need extra strength to support them in rougher water at higher speeds. Boat lengths 18’ (5.5 m) to 42’ (12.8 m). Blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with 1" (2.5 cm) turned up edges and a 5 degree taper on the inside, heavy duty hinge with 1/4" (6.4 mm) diameter hinge pin. Full transom back plate with welded on stainless steel upper & adjustable lower actuator mounting brackets, 5/16 (.8 cm) stainless steel mounting bolts & mechanical strain-relief cable seals. 3.75" (9.5 cm) sacrificial anodes installed.

Note: Boat-mounting hardware to be supplied by the customer

Specifications
Plane Size L x W 12"" x 12""
Boat length 18' - 34'
Min Transom Height 10.5""
Voltage 12vDC

What's in the Box:
  • (2) 12-gauge stainless steel Electro-Polished blades
  • (2) 15055-001 XD Extreme Duty actuators with 6’ (1.8 m) leads & Deutsch connectors
  • (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length
  • Lenco owner's/installation manual
Lenco Marine

Lenco 12""x12"" Heavy Duty Trim Tab Kit 12v Requires Switch

$1,217.62

Lenco 12"" X 12"" Heavy Duty Perfomance Trim Tab Kit - Requires Switch

Model: 15041-101

The Heavy Duty series is designed & built for the boats that need extra strength to support them in rougher water at higher speeds. Boat lengths 18’ (5.5 m) to 42’ (12.8 m). Blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with 1" (2.5 cm) turned up edges and a 5 degree taper on the inside, heavy duty hinge with 1/4" (6.4 mm) diameter hinge pin. Full transom back plate with welded on stainless steel upper & adjustable lower actuator mounting brackets, 5/16 (.8 cm) stainless steel mounting bolts & mechanical strain-relief cable seals. 3.75" (9.5 cm) sacrificial anodes installed.

Note: Boat-mounting hardware to be supplied by the customer

Specifications
Plane Size L x W 12"" x 12""
Boat length 18' - 34'
Min Transom Height 10.5""
Voltage 12vDC

What's in the Box:
