Lenco 25""x14"" High Performance Trim Tab Kit 12v Dual Actuator Requires Switch

No reviews
$2,646.49
Shipping calculated at checkout.

Delivery and Shipping

We only ship to the continental U.S, including territories, Samoa and APO/FPO addresses. Delivery estimates include item preparation and shipping time.

Standard items are shipped within 24 hours on weekdays. Orders placed after 3:00 PM EST on a Friday will be shipped on Monday.

However,  for special industrial, Fishing and Tackle Products:

  • We do not ship to P.O. boxes
  • We do not ship directly to APO/FPO addresses.
  • Delivery time may vary from 4 to 20 days.

FREE SHIPPING! on orders of less than 5lbs and with purchase price of $149.99.00 or more;
Pay an annual fee of $99.00 and receive Free Shipping for all Orders during the year of Active Membership.

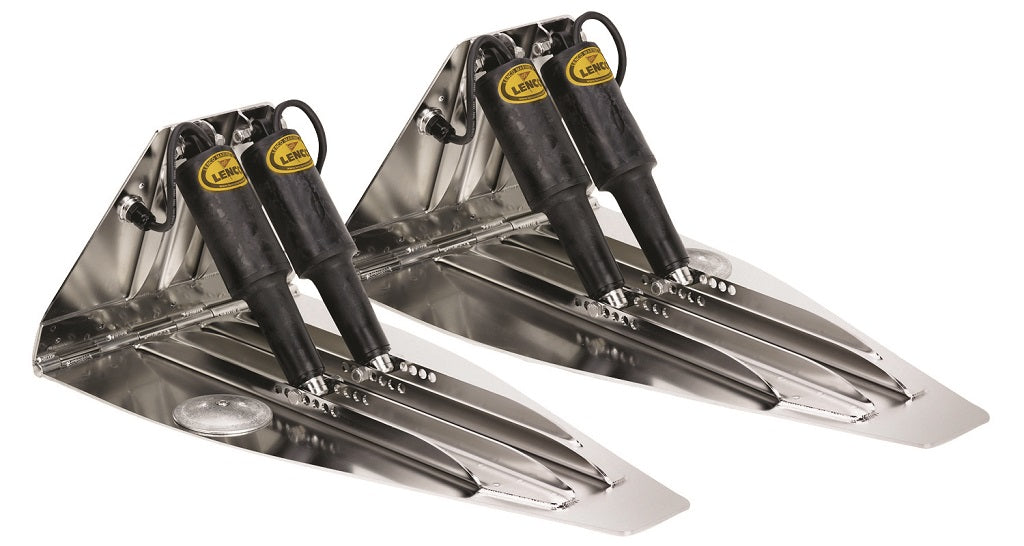

Lenco 25"" X 14"" High Perfomance Trim Tab Kit Dual Actuator- Requires Switch

Model: 15051-101

Same powerful features and unique blade design as the single HP series with double the actuator support for larger, faster boats. Boat lengths 24’ (7.3 m) to 52’ (15.8 m). Blades are constructed of Electro-Polished 7 gauge (4.6 mm) laser cut 304 stainless steel, heavy duty hinge with 3/8" (9.5 mm) diameter hinge pin. Full transom back plate with mechanical strain-relief cable seals, welded on stainless steel upper & adjustable lower actuator mounting brackets, 3/8" (9.5 mm) stainless steel mounting bolts. 3.75" (9.5 cm) sacrificial anodes installed.

Note: Boat-mounting hardware to be supplied by the customer

Note: Actuator extension harnesses not in kits, must be purchased separately (4 required)

Specifications
Plane Size L x W 21"" x 14""
Boat length 24' - 42'
Min Transom Height 10.5""
Voltage 12vDC

What's in the Box:
  • (2) 7-gauge stainless steel Electro-Polished blades
  • (4) 15056-001 XD Extreme Duty actuators with 6’ (1.8 m) leads & Deutsch connectors
  • Lenco owner's/installation manual
Lenco Marine

Lenco 25""x14"" High Performance Trim Tab Kit 12v Dual Actuator Requires Switch

$2,646.49

Lenco 25"" X 14"" High Perfomance Trim Tab Kit Dual Actuator- Requires Switch

Model: 15051-101

Same powerful features and unique blade design as the single HP series with double the actuator support for larger, faster boats. Boat lengths 24’ (7.3 m) to 52’ (15.8 m). Blades are constructed of Electro-Polished 7 gauge (4.6 mm) laser cut 304 stainless steel, heavy duty hinge with 3/8" (9.5 mm) diameter hinge pin. Full transom back plate with mechanical strain-relief cable seals, welded on stainless steel upper & adjustable lower actuator mounting brackets, 3/8" (9.5 mm) stainless steel mounting bolts. 3.75" (9.5 cm) sacrificial anodes installed.

Note: Boat-mounting hardware to be supplied by the customer

Note: Actuator extension harnesses not in kits, must be purchased separately (4 required)

Specifications
Plane Size L x W 21"" x 14""
Boat length 24' - 42'
Min Transom Height 10.5""
Voltage 12vDC

What's in the Box:
