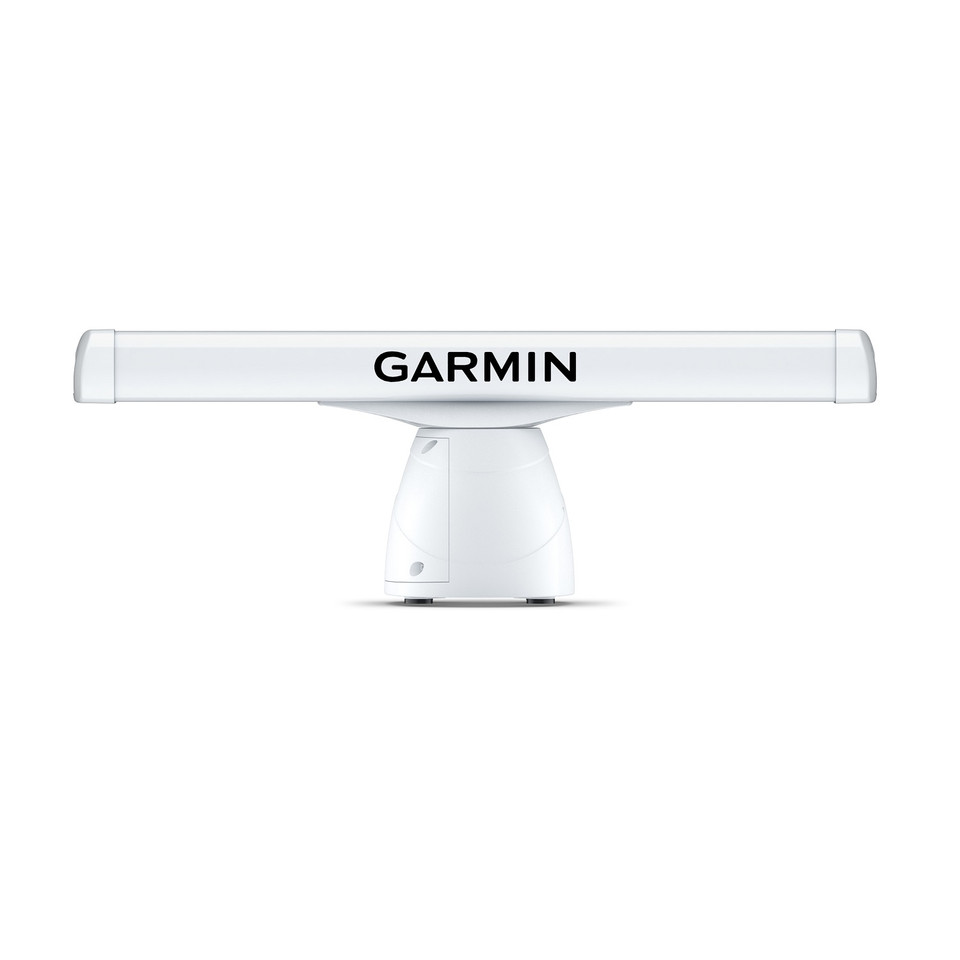

Garmin GMRTM 1234 xHD3 12kw 4 feet Open Array Radar and Pedestal
Model: K10-00012-26- SCAN AVERAGING TECHNOLOGY
- IMPROVED TARGET-SIZE PROCESSING
- SPLIT-SCREEN DUAL-RANGE DISPLAY
- 100-KNOT COMMERCIAL GRADE WIND RATING
- QUIET OPEN-ARRAY DRIVE MOTOR
A first for Garmin magnetron radar, scan averaging helps filter out sea clutter and interference to enhance the detection and display of consistent targets.
Pulse expansion and angular target-size processing techniques optimize on-screen object shapes for better interpretation at all range scales.
The 100-knot wind-rated open-array antennas1 have rotation speeds of 24 and 48 RPM for fast redraw rates, with max range up to 96 nautical miles on the 25-kW versions (up to 72 nautical miles on the 4- and 12-kW versions).
A historical "trail" of boats on the water is displayed on the screen, removing relative motion influence to help you quickly identify moving targets and potential collision threats.
A single radar antenna is capable of providing split-screen, side-by-side images on your compatible chartplotter, with independent range setting and controls for both close and long range. Overlay either or both ranges on a chart.
Gain automatically adjusts levels to optimum settings for harbors, near shore and offshore in open waters.
See overlaid images on your chartplotter's map screen (with appropriate sensors, sold separately).
Pick out targets at a distance, thanks to narrow horizontal beamwidth and high antenna gain.
Dual-radar support provides redundancy and allows each display unit to pull data from different sources.
Radar gain automatically adjusts sea clutter for calm, medium and rough sea conditions.
Dynamic sea filter radar gain automatically adjusts sea clutter for calm, medium and rough sea conditions.
Locate flocks of birds at the water's surface where baitfish are also likely to be found.
Track up to 30 targets to help avoid collisions (with appropriate sensors, sold separately).
14-kW versions require optional equipment (sold separately) for 100-knot wind rating
Specifications| 4 feet array: 1325 x 122 x 170 mm (52.2 x 4.8 in x 6.7 in) Pedestal: 520 x 328 x 314 mm (20.5 in x 12.9 in x 12.4 in) |
|
| WEIGHT | 4 feet array and pedestal: 27.6 kg |
| WATERPROOF | IPX6 |
| MAX WIND LOAD | 100kt |
| ANTENNA LENGTH | 4 feet array: 48 in (122 cm) |
| ROTATION SPEED (RPM) | 24 and 48 rpm |
| BEAM WIDTH | 4 feet array: 1.8 deg horizontal |
